Grinding
Products

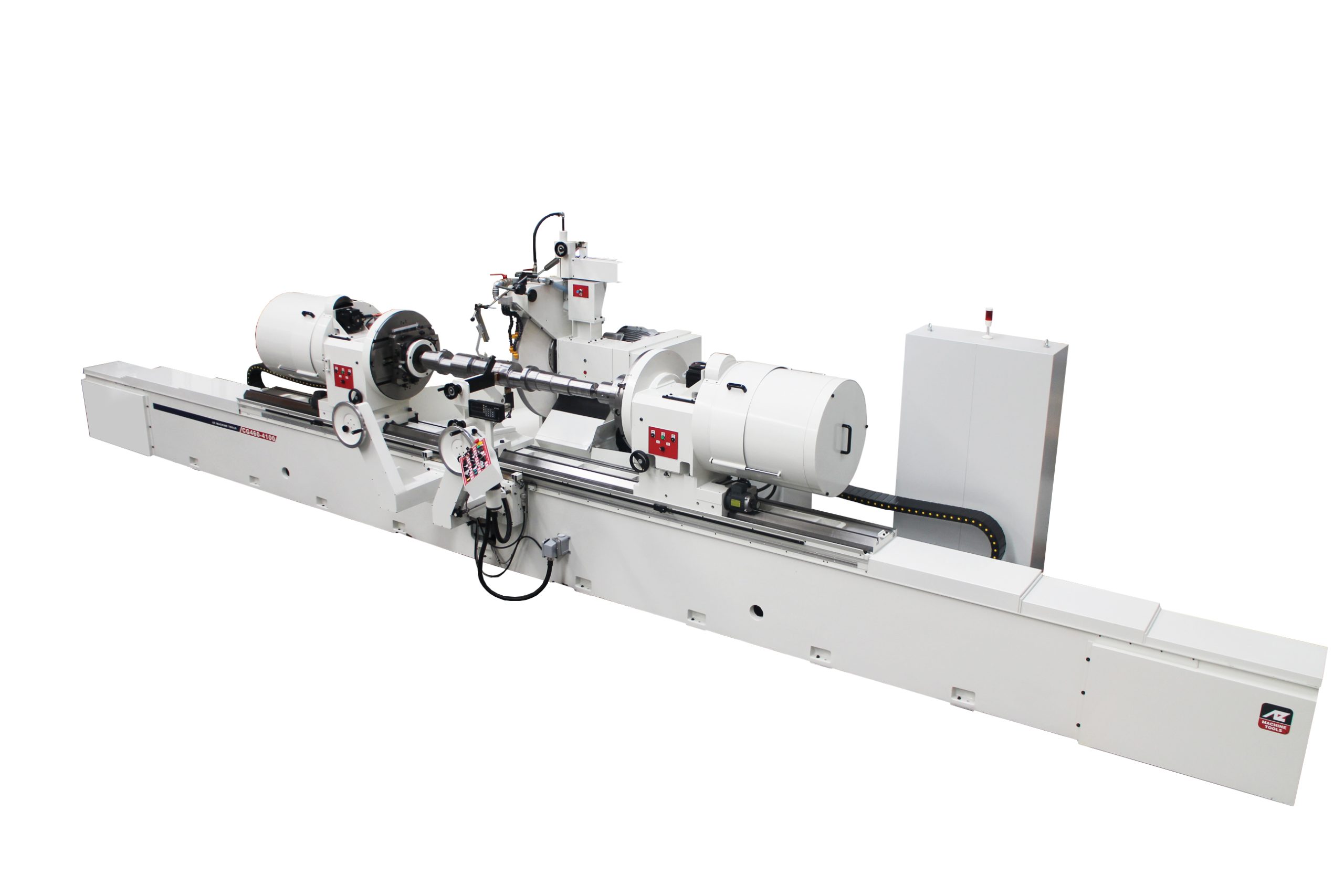

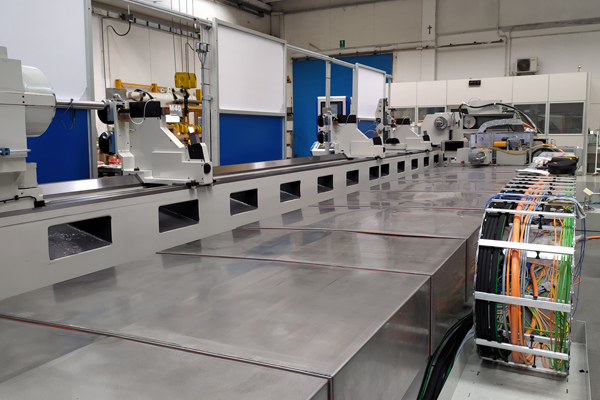

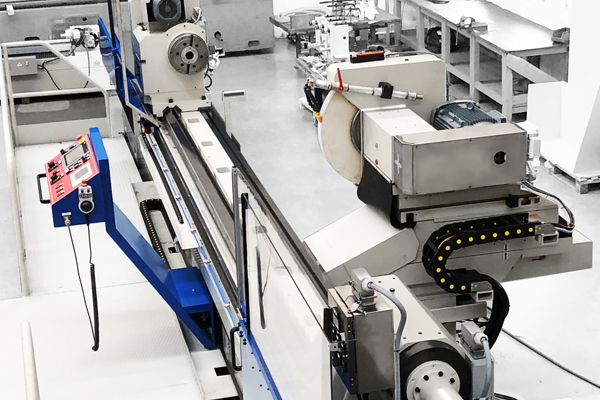

CYLINDRICAL, HEAVY-DUTY UNIVERSAL
Swing from 24” to 60” by centers 60”-45’

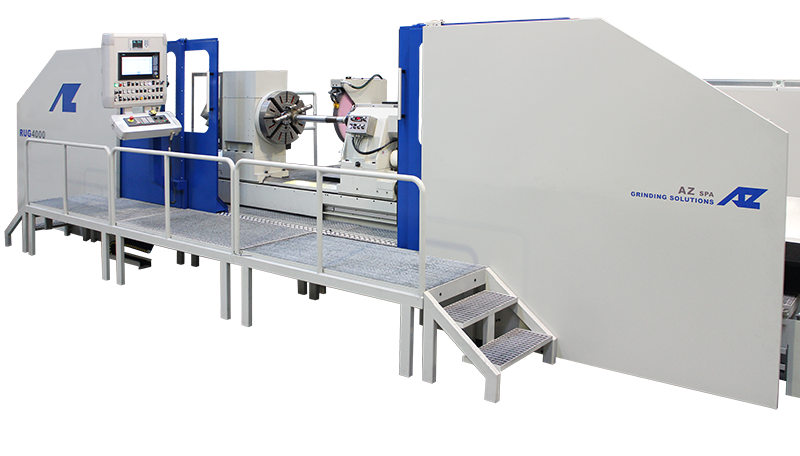

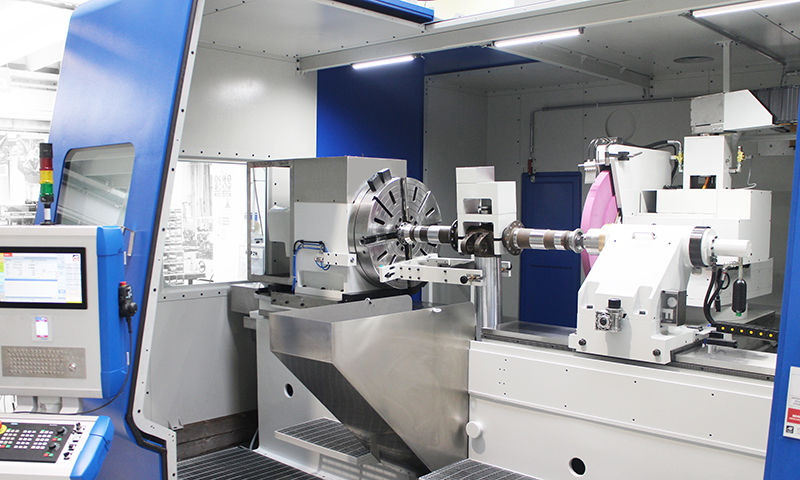

LANDING GEAR, GAP TYPE
Swing (gap/bed) 141”/48” x 200” centers

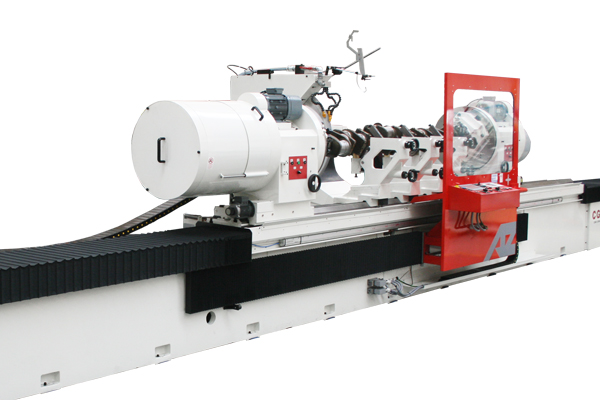

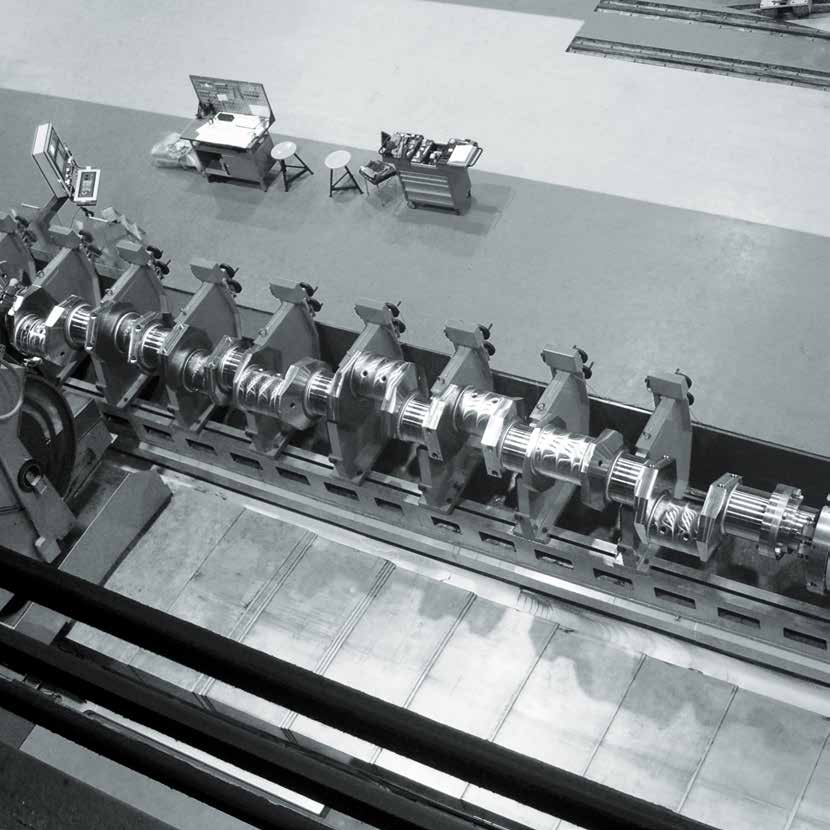

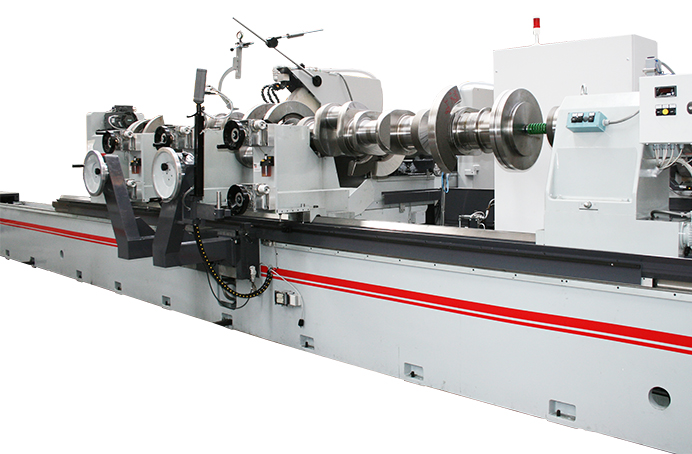

CRANKSHAFT
Swing from 36” to 82” by centers 160”-41’

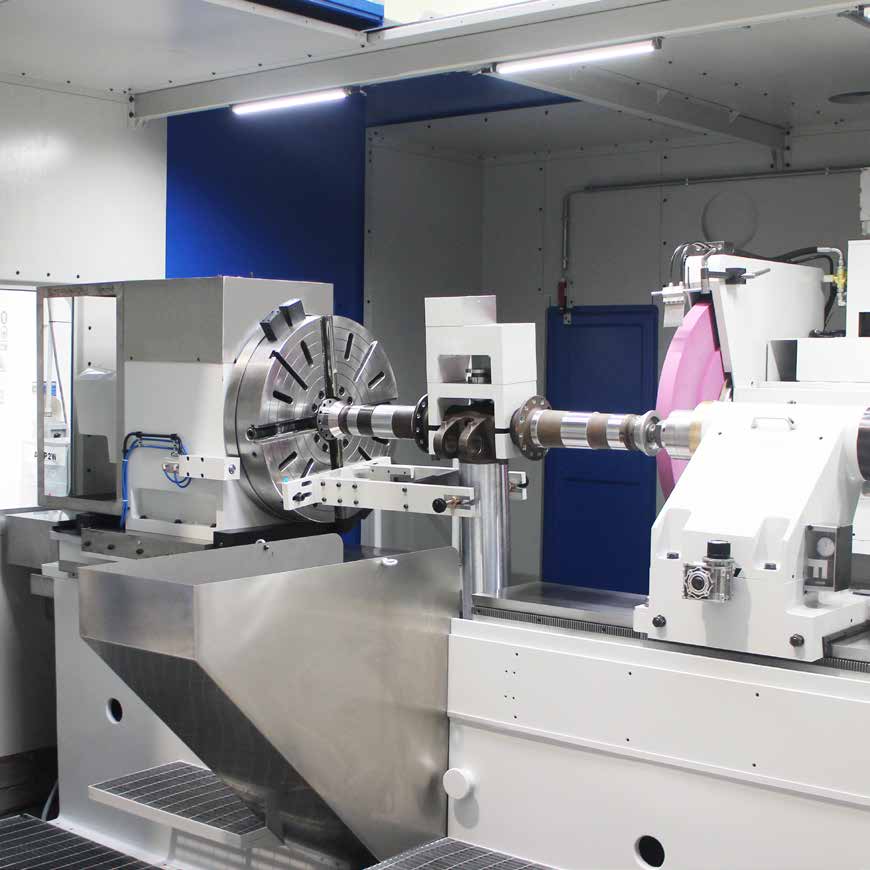

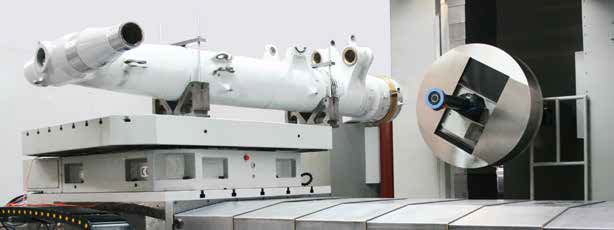

ORBITAL – INTERNAL/EXTERNAL
Internal diameter 2.75’’ – 36’’
External diameter 0.38’’ – 18’’
External diameter 0.38’’ – 18’’

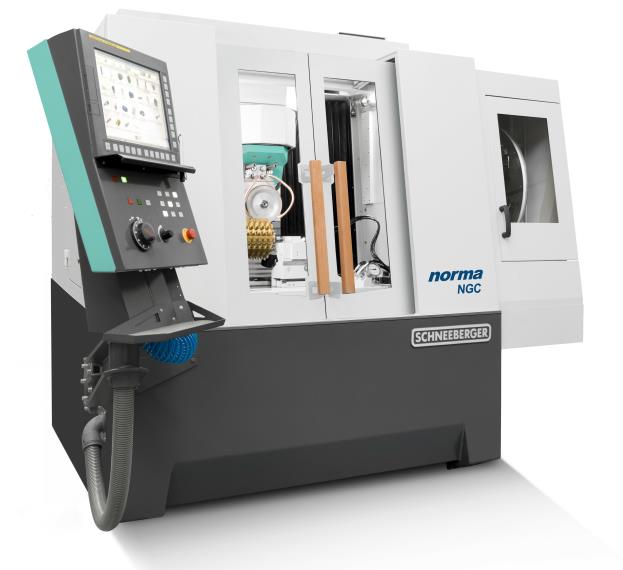

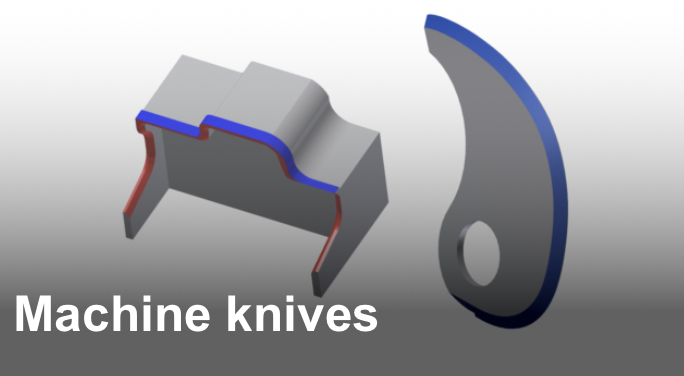

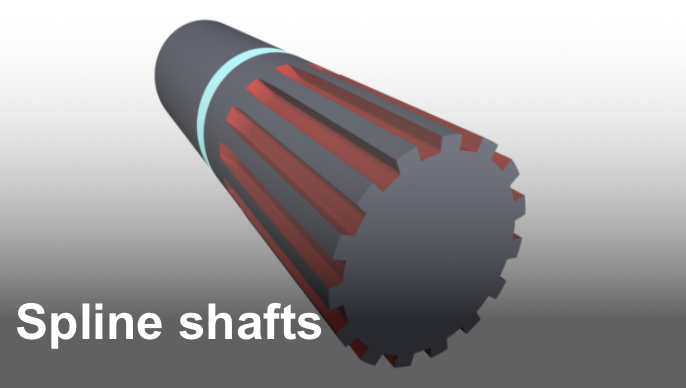

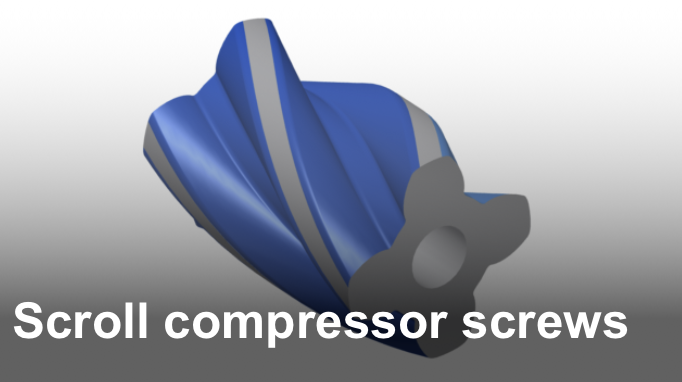

TOOL GRINDERS
4, 5 & 6 axis tool grinders cylindrical and broach grinding
from 10” x 10” length to 16” x 140”
from 10” x 10” length to 16” x 140”

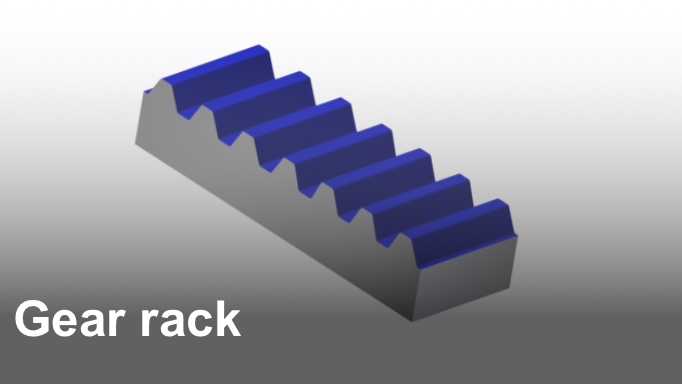

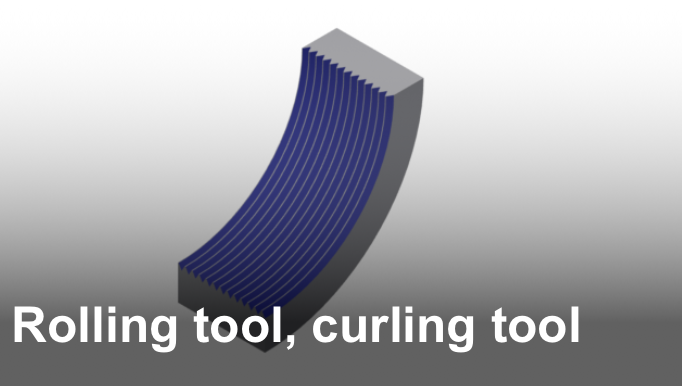

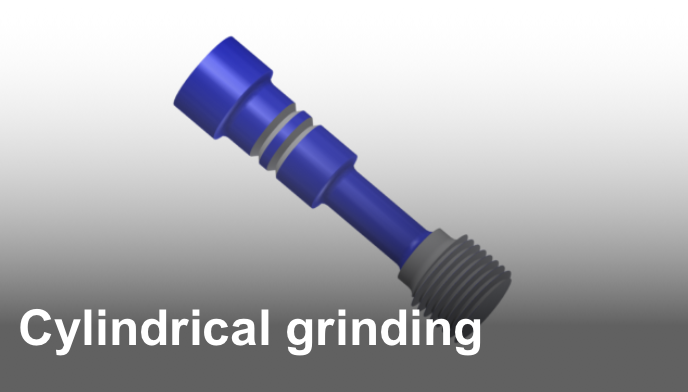

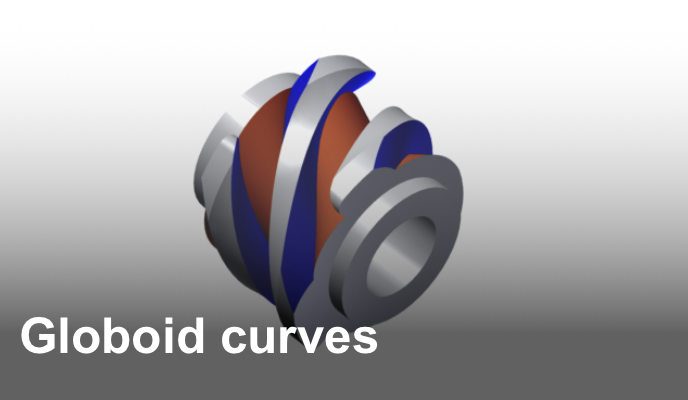

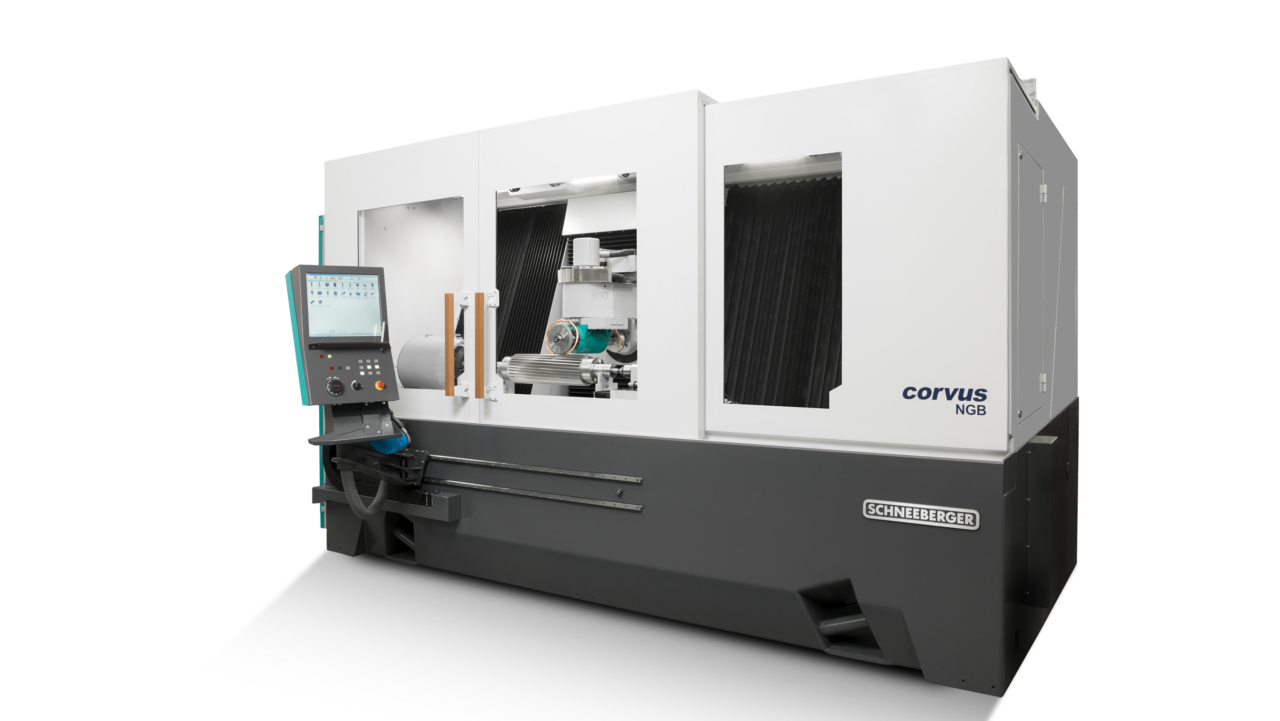

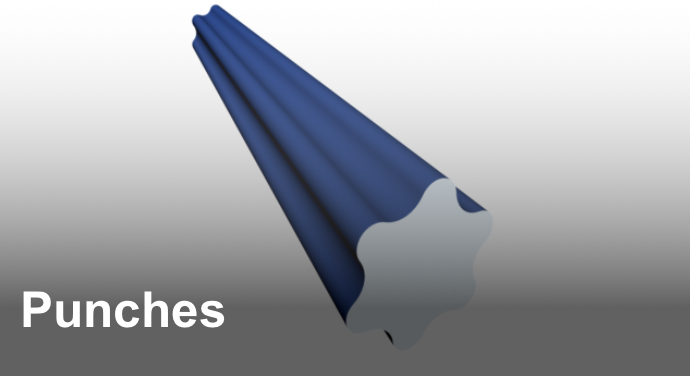

COMPONENT GRINDING
Grinding of high-precision components with one clamping due to our flexible 5-axis machine concept. Operator interface (HMI) provides extensive programming assistance with an integrated library of standard and user-defined shapes. For a solution to your complex grinding application, please enquire.

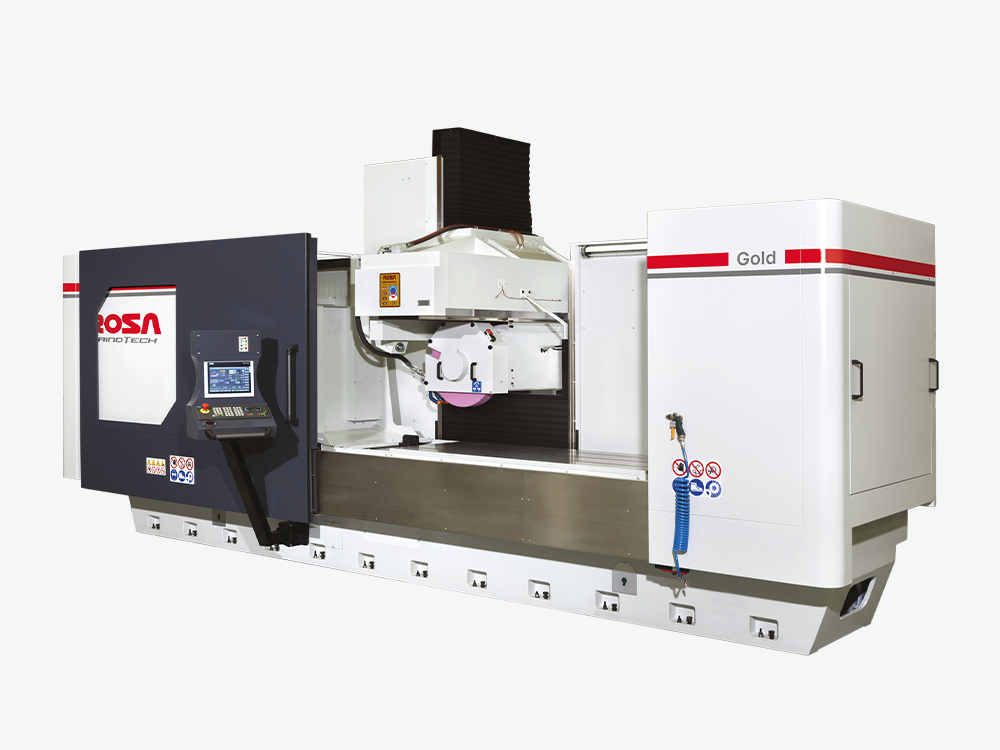

HORIZONTAL SURFACE GRINDERS WITH RECIPROCATING TABLE
Part sizes from 24” to 300” long by 16” to 44” wide by 13” to 40” high

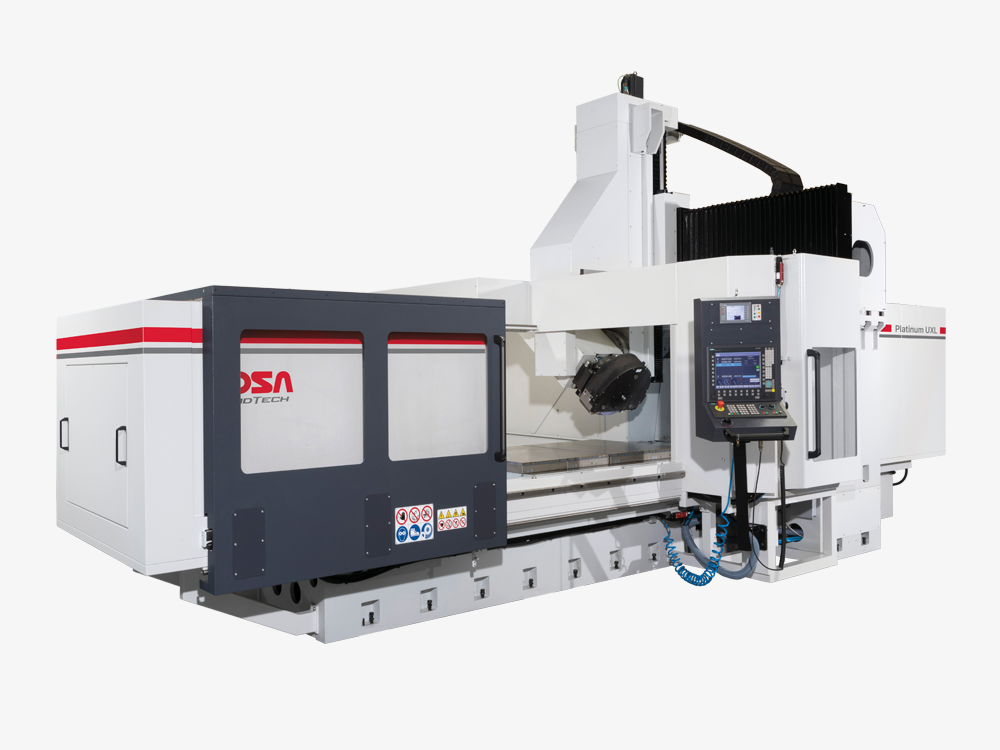

VERTICAL BRIDGE SURFACE GRINDERS WITH RECIPROCATING TABLE AND SWIVELLING HEAD
Part sizes from 84” to 300” long by 62” to 100” wide by 31” to 44” high
VERTICAL, ROTARY TABLE

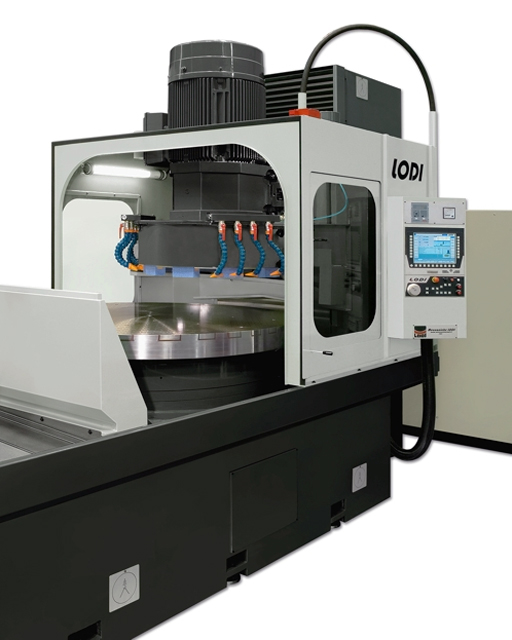

BLANCHARD TYPE
from 40” to 160” diameter by 48” high,
wheel from 21” to 80” diameter
spindle power from 50 to 225 hp
from 40” to 160” diameter by 48” high,
wheel from 21” to 80” diameter
spindle power from 50 to 225 hp

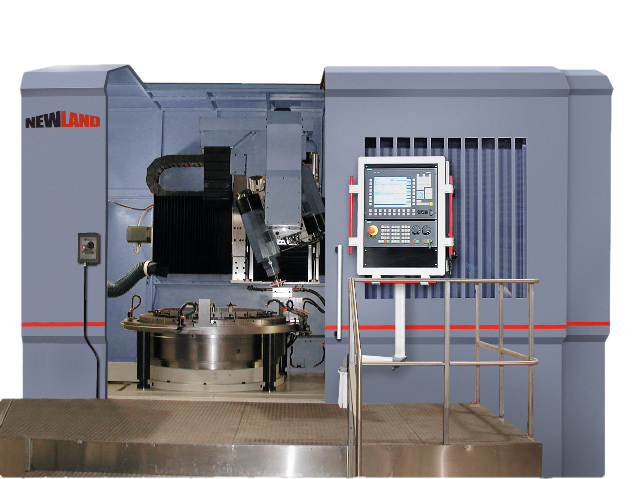

VERTICAL BEARING GRINDING CENTERS
Table diameter from 50” to 125”
